Sending examination data from EyeSuite (Octopus 600/900) to PeriData

Export directly after the examination

If the automatic export has been configured: Press the "Save" button. The data are exported automatically when saved.

If no data arrives: Press the button    "Export >> PeriData"

Export of stored data

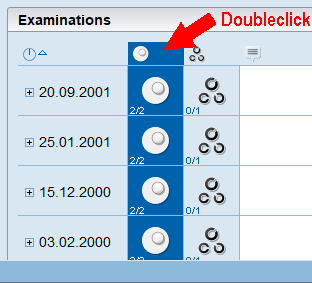

1. Open one or several examinations in EyeSuite. ALL examinations are selected by a doubleclick on the column header:

2. Press the "Export to PeriData"   button.

(All visible examinations are exported. This can be a larger number in a trend display)

If PeriData is NOT RUNNING during the sending procedure, the data file is lying in the Exchange Folder and will be imported by PeriData when it is opened the next time.

Troubleshooting

Data does not arrive in PeriData

1. Is there an open database in PeriData?
2. Check the directory C:\PeriDataExchange. If you do not find a file with the extension .OC1, then the EyeSuite program did not send
3. If .OC1 files are "waiting", then open the Menu Extra > Options > Tab Perimeter and check the settings

Make the connection: all steps
